We specialise in the fabrication of custom steel moulds for precast concrete applications. Recently, we completed the fabrication of steel moulds for bridge column construction, including both large rectangular columns and circular columns used in infrastructure projects.
Rectangular Column Steel Mould – 6000mm x 1300mm
One of the major moulds fabricated for this project was a rectangular reinforced concrete column measuring 6000mm in length and 1300mm in width.
Due to its large size, the mould was designed with heavy-duty steel plates and structural stiffeners to withstand the high concrete pressure generated during casting. The mould was manufactured with precision alignment features to ensure dimensional accuracy and ease of assembly on site.
Key features include:
- Heavy-duty steel construction
- Reinforced stiffening system to minimize deformation
- Modular bolted assembly for easy handling
- Smooth internal surface for quality concrete finish
- Reusable design for multiple casting cycles
The completed mould allows contractors to produce consistent and high-quality bridge columns while reducing construction time and labour requirements.
Circular Column Steel Mould – ID1800

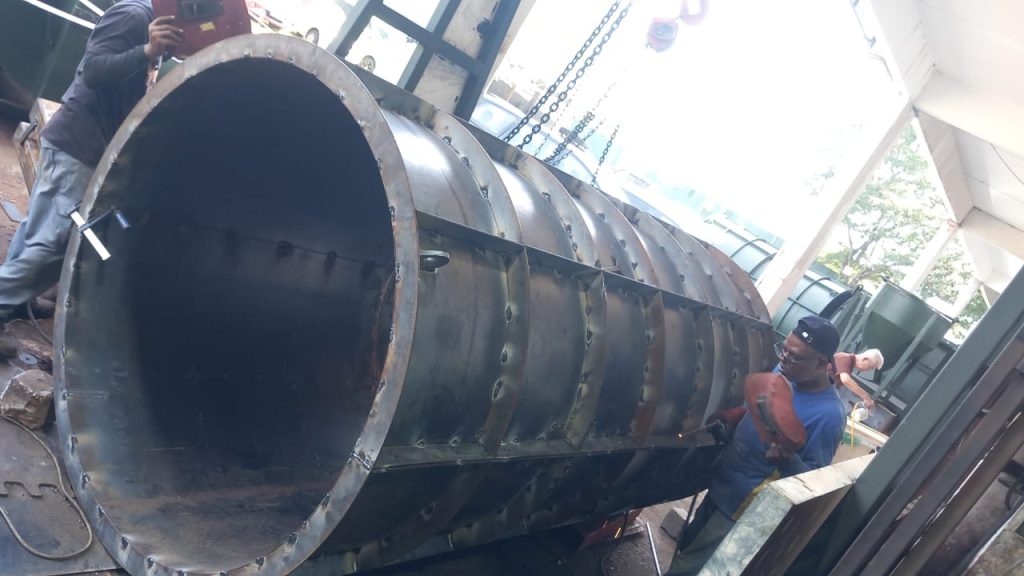

Bridge pier Casting mould ID1800 x H3000
In addition to the rectangular column mould, we also fabricated a circular steel mould with an internal diameter (ID) of 1800mm.

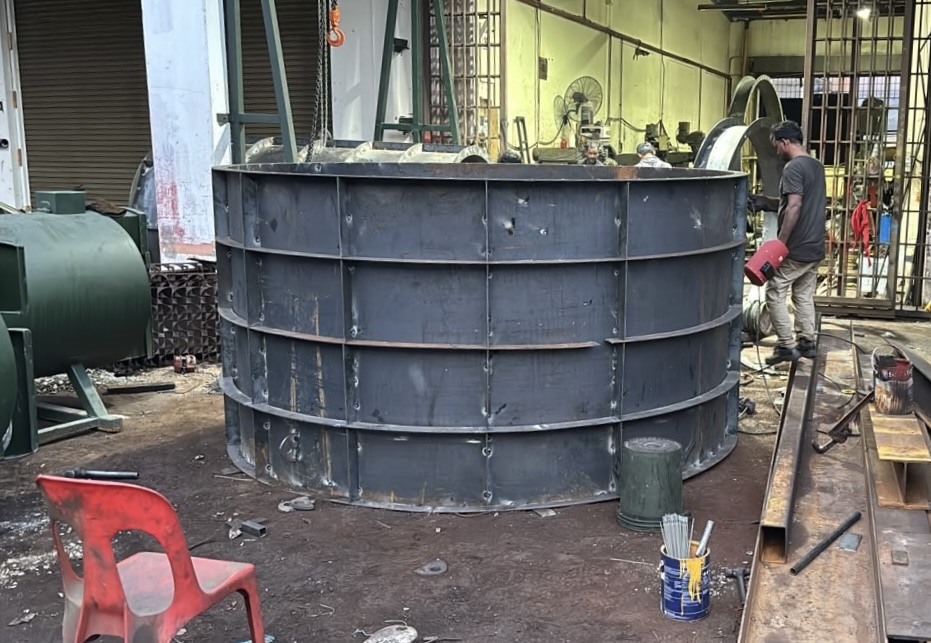

Bridge pier Casting mould ID2800 x H1500
The circular mould was fabricated using rolled steel plates to achieve accurate roundness and dimensional consistency. Special attention was given to joint alignment and locking mechanisms to ensure quick installation and demoulding after concrete curing.
Advantages of the circular mould include:
- Accurate 600mm internal diameter
- Strong and durable steel construction
- Easy assembly and dismantling
- Excellent concrete surface finish
- Suitable for repeated use in precast and cast-in-situ applications
Quality Fabrication and Engineering Expertise

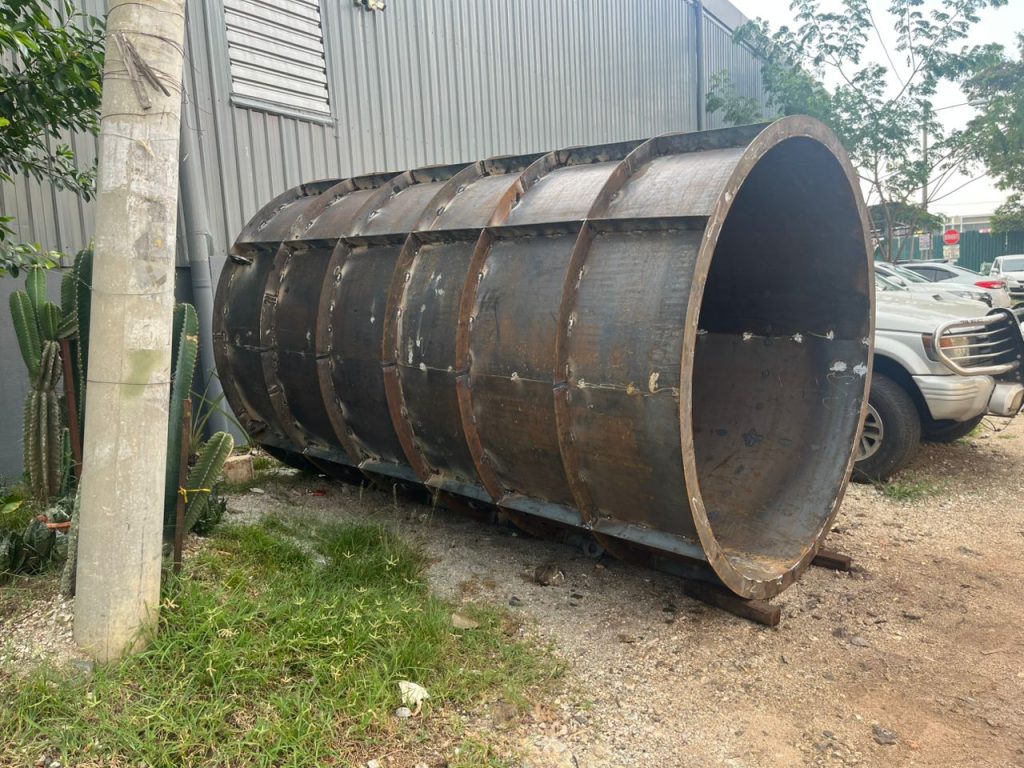

Bridge pier Casting mould ID1500 x H3000
Every mould fabricated by One Machine Engineering is produced according to project specifications and undergoes dimensional inspection before delivery. Our team has extensive experience in manufacturing moulds for precast concrete products, bridge components, drainage systems, manholes, tanks, and other infrastructure applications.
Whether the requirement is a circular column mould, rectangular column mould, pile cap mould, or custom precast formwork, we can provide a complete fabrication solution from design review to final production.
Custom Steel Mould Fabrication @ Puchong
One Machine Engineering Sdn Bhd provides custom steel mould fabrication services throughout Malaysia. Contact us today to discuss your project requirements and obtain a quotation for your next precast concrete or infrastructure project.
