We fabricated a set of casting mold for Forest City, Johor, Malaysia in early 2020.
The manhole is 2100mm in diameter and ground level to invert level of ouoe us 5 < D < 9 meter
Back drop which is where the opening located is around 600mm.
Internal Casting Mould
We also fabricated casting mold for ground pipe
External casting mould
Casting mould for caisson ring
Square Casting mould / formwork

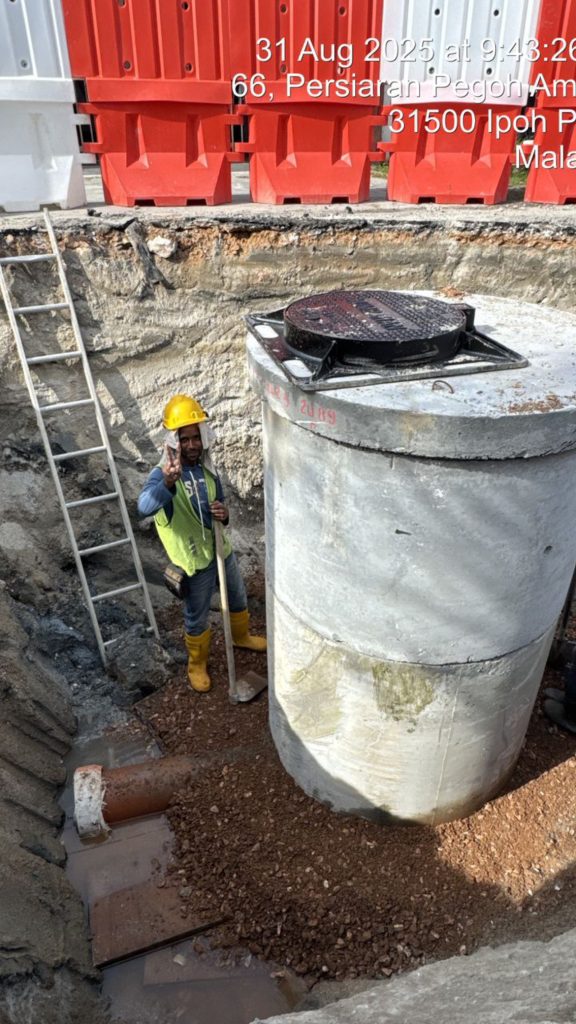

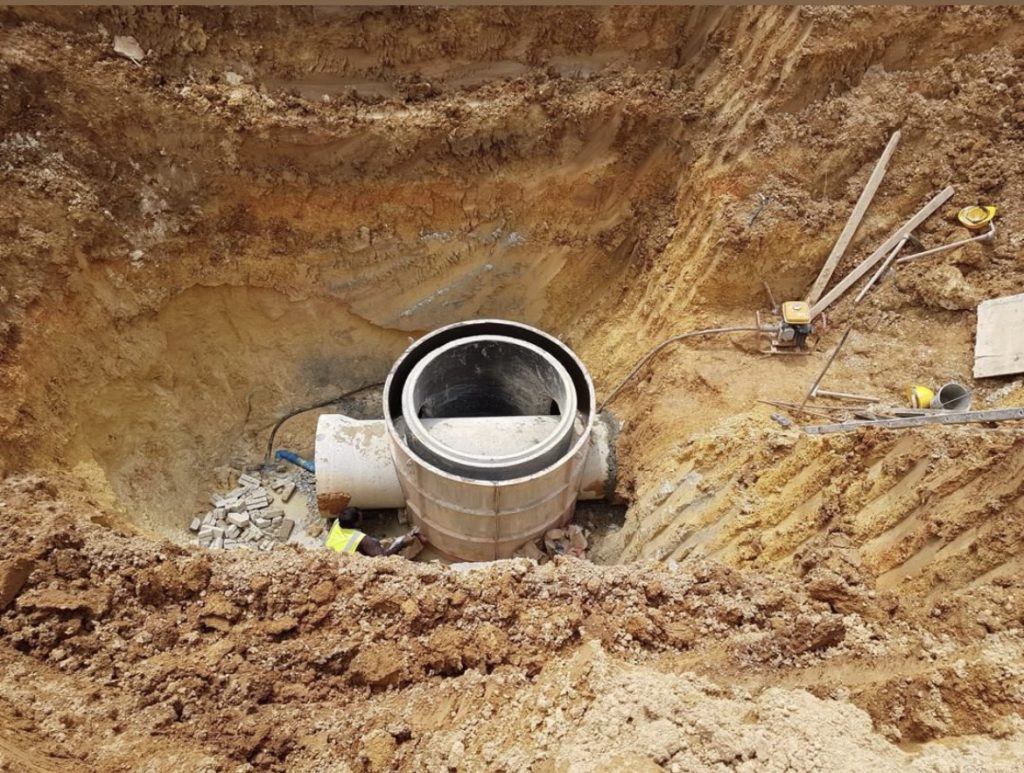

At work site
